VMC1370

1. Resin sand casting, Meehanite HT-300;

2. X, Y, Z rails adopt stainless steel telescopic cover;

3. Roller type linear guideway from Taiwan

4. Ball lead screw from Taiwan

5.Can choose belt driven spindle and direct driven spindle;

6. Taiwan pneumatic cylinder;

7. Taiwan ATC, umbrella type and disc type both are available;

8. Import bearings for leadsrews;

9. Import coupling;

10. Headstock Nitrogen balance system as optional;

11. Full enclosed cover;

12. Rigid tapping;

13. Spindle center ring blast;

14. Work lamp;

15. Pilot lamp;

16. USB interface;

17. Manual pulse generator (MPG);

18. Centralized automatic lubrication system.

19. Cooling system.

20. Heat exchanger for electrical cabinet ;

21. Leveling blocks & bolts;

22. Air gun+Water gun

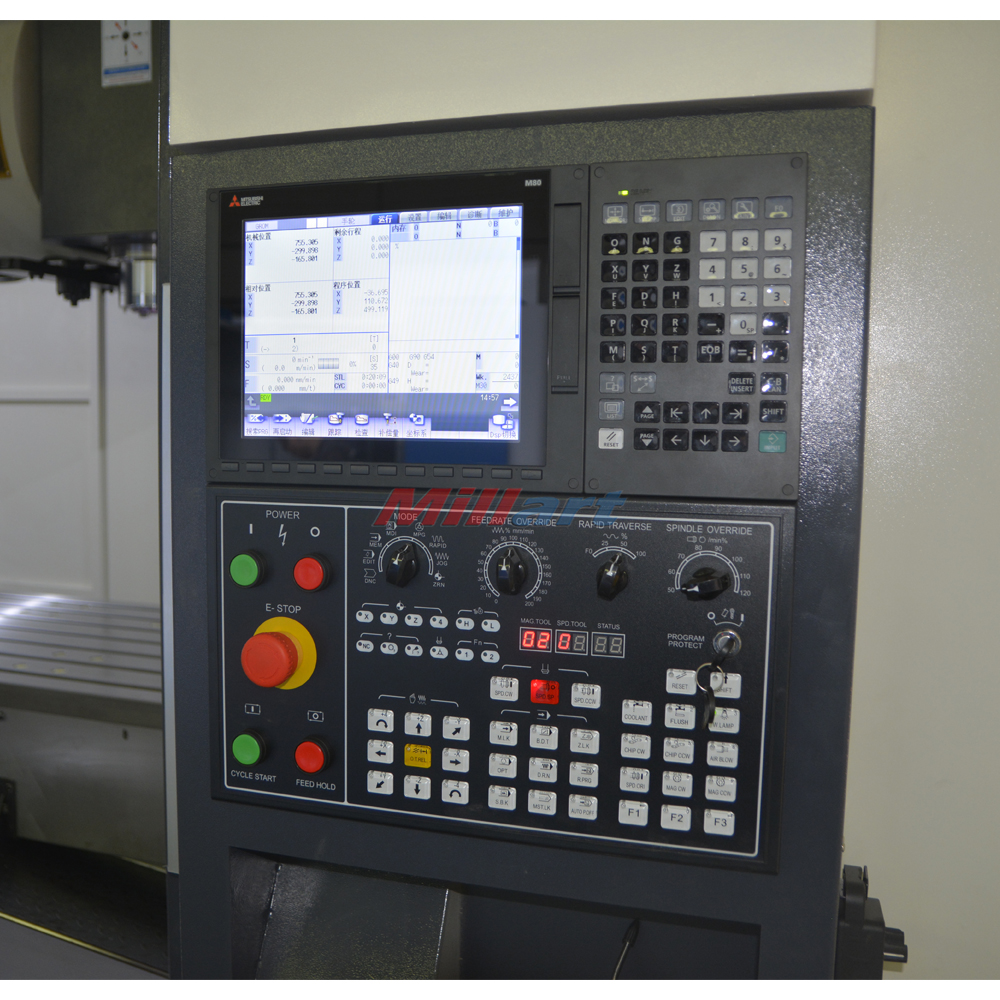

23. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Products Details

Item

Unit

VMC1370

X axis travel

mm

1300

Y axis travel

mm

700

Z axis travel

mm

700

Spindle nose to worktable

mm

110-810

Spindle center to column

mm

750

Leadscrew diameter

mm

Φ45

Linear guideway width

mm

45/45/45

Worktable Length

mm

1400

Worktable width

mm

700

Max loading capacity

kg

1200

T-slots(NO./width/pitch)


5*18*110

Spindle speed

rpm

8000

Main motor power

kw

15/18.5

Spindle taper


BT40-150

Fast moving speed (X/Y/Z)

m/min

30/30/24

Cutting speed

mm/min

1-10000

Feed motor torque

Nm

37/37/37

Feed motor power

kw

4.5/4.5/4.5

Capacity

pcs

Arm 24

Max tool diameter

mm

120

Max tool weight

kg

8

Max tool length

mm

300

Positioning accuracy

mm

0.008

Repeat accuracy

mm

0.005

Length

mm

3800

Width

mm

2560

Height

mm

3200

Weight

kg

9500

Standard accessories:

Fanuc 0i MF control system

Taiwan Spindle: 8000rpm

X/Y/Z axes: Fanuc servo drive motor

Main motor: Fanuc spindle motor

24 tools disc type

Nitrogen balance cylinder

USB for information transfer

Rough cutting of thread

Full closed cover

Automatic lubrication

Coolant system

work lamp

Tri-color indication lamp

Air gun

Heat exchanger in cabinet

3-Axis linear guideway from Taiwan Hiwin

Ball leadscrew from taiwan Hiwin

Optional accessories:

Automatic chip conveyor & chip bucket (Chain type)

Automatic chip conveyor & chip bucket (Screw type)

Spindle direct driven, speed 12000 rpm

Spindle oil cooling

Spindle center water spray(only for belt type spoindle)

Air conditioner for electricity cabinet

Oil skimmer

High pressure chip flushing system

Renishwa tool probe TS27R

Renishwa workpiece measure measurement device OMP60

4th Axis or 5th Axis
