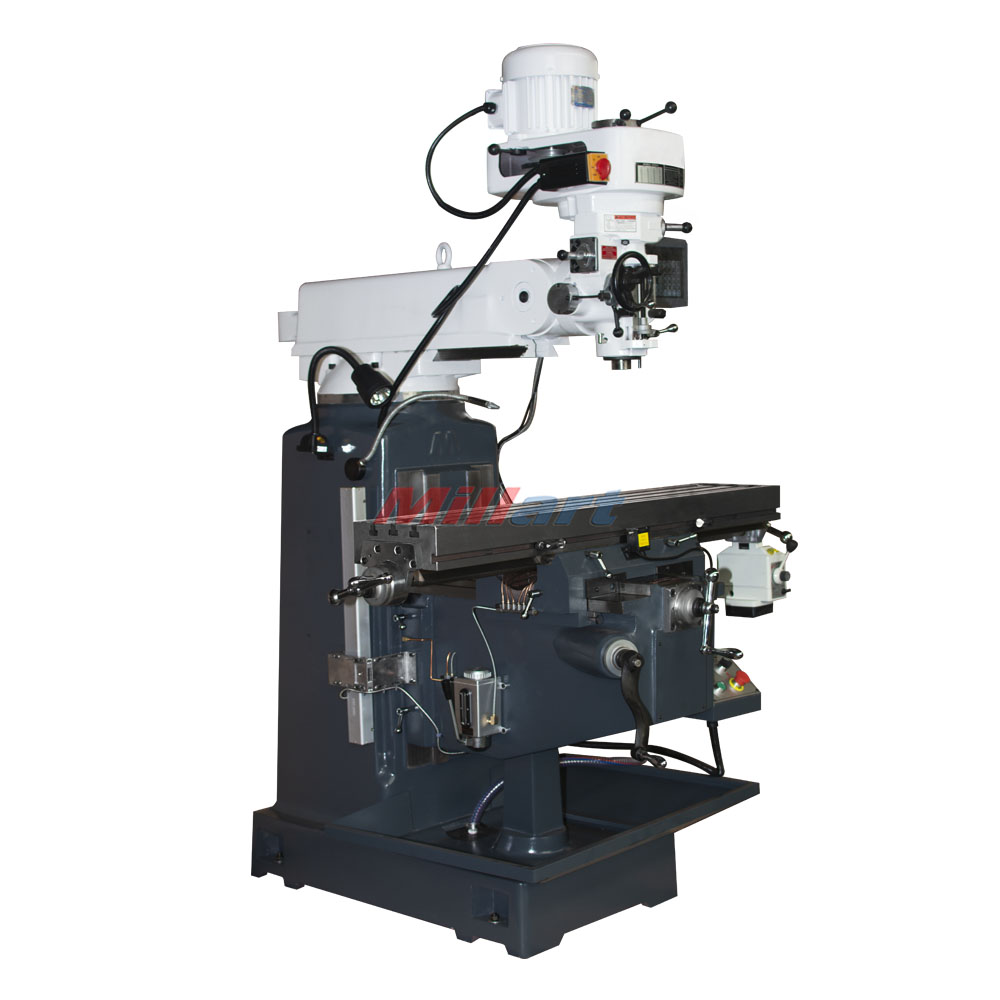

MODEL | X6325 |
Table size | 254*1270 |
Long travel(mm) | 820 |
Cross travel(mm) | 380 |
Vertical travel(mm) | 400 |
T-slot No.and size(mm) | 3*16 |
Ram travel(mm) | 470 |
Distance from spindle nose to table(mm) | 0-400 |
Spindle hole taper | R8 (ISO40 optional) |
Spindle travel(mm) | 127 |
Spindle speed(r.p.m) | 16steps: 66-4540 Variable: 60-4200(Optional) |
Auto.quill feed | Three steps:0.04/0.08/0.15mm/r |
Spindle motor | 3HP / 5HP (Optional) |
Head swivel | 90° |
Head tilting | 45° |
Dimension of package | 1516*1550*2080 |
Weight(kgs) | 1400 |
Standard accessories:
Draw bar |
Working lamp |
Lubricating |
Splash guard |
Tools and box |
Optional accessories:
X axis auto power feed |
Y axis auto power feed |
Z axis auto power feed |
Machine vice 160mm |
3-Axis Digital readout |
Air draw bar |
58 pcs Clamping kits |
Slotting head |
Spindle protection |
Variable spindle speed |
5 HP Main motor |
Universal Dividing Head F11-160A |
Rotary table TSL250 |
Cooling system |
Oil tray |
