XJ9512

This highly precise drilling and milling machine is ideal perhaps for a smaller or more compact workshop, or simply where space is an issue. Bench mountable,

Has a head that tilts 45°left and right (from vertical), is robustly constructed from steel.

It also comes with all the necessary tools and accessories to successfully use and maintain it.

There s a fine feed for milling and a coarse feed for drilling, plus an easy-to-read dial with .0001" increments so you get the right setting.


Products Details

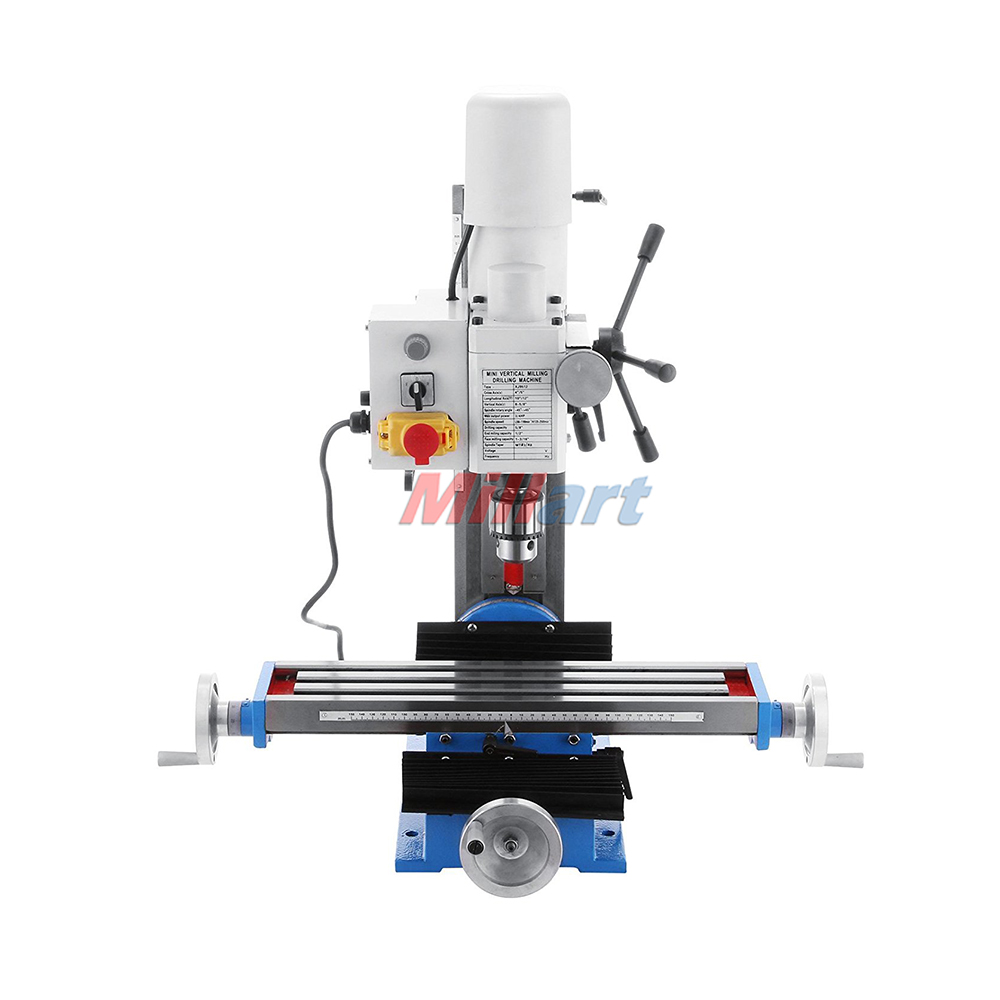

XJ9512 MINI DRILLING & MILLING MACHINE

Technical spec.

XJ9512

Drilling capacity

16mm

Max face mill capacity

30mm

Max end mill capacity

13mm

Spindle box travel

220mm

Longitudinal travel

250/300mm

Cross travel

100/130mm

Spindle rotary angle

-45~+45

Working table size

460x112mm

Motor power

550W

Max distance spindle to table

220mm

Spindle taper

MT3

Spindle speed

50-2500RPM

Net weight/Gross weight

62/80kg

Packing size

570x510x740mm 640x565x720mm

Standard accessories:

Drill chuck

spanners

Tools

Optional accessories:

Machine vice

Clamping kits

Reduction sleeve

Collet chuck kits 8pcs

Stand base
